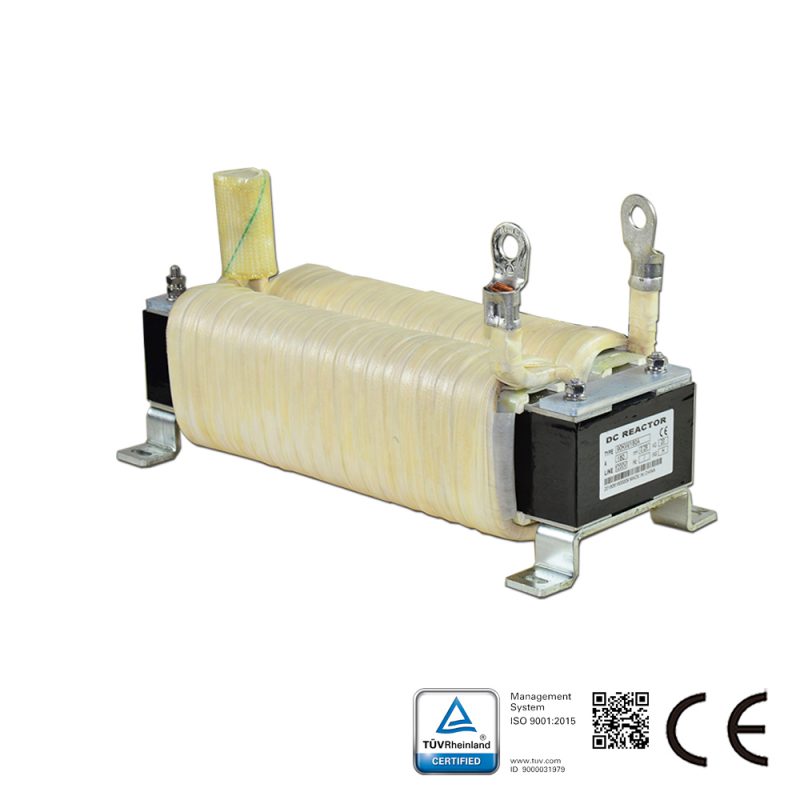

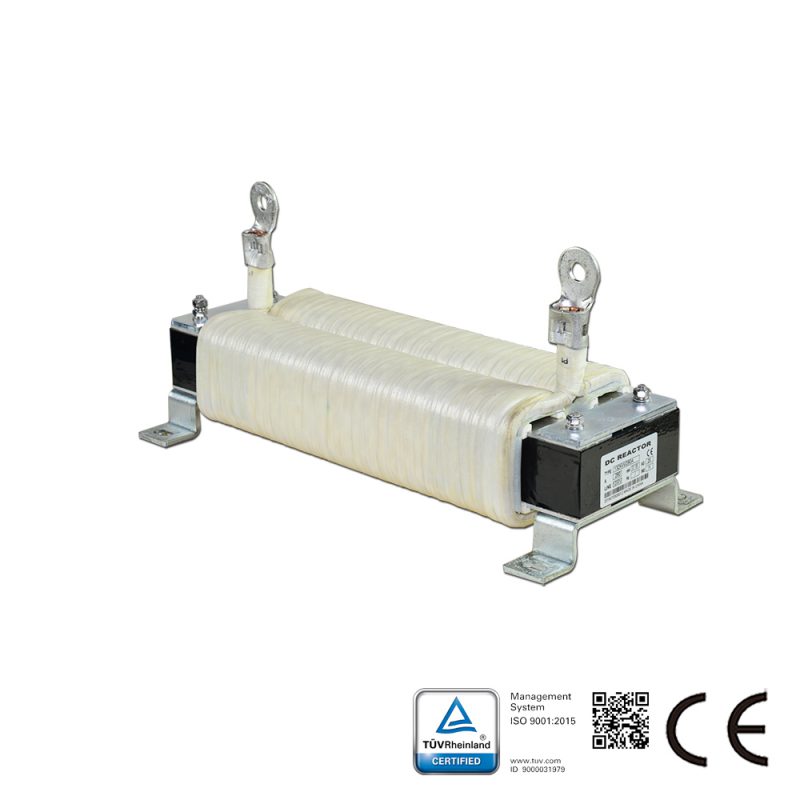

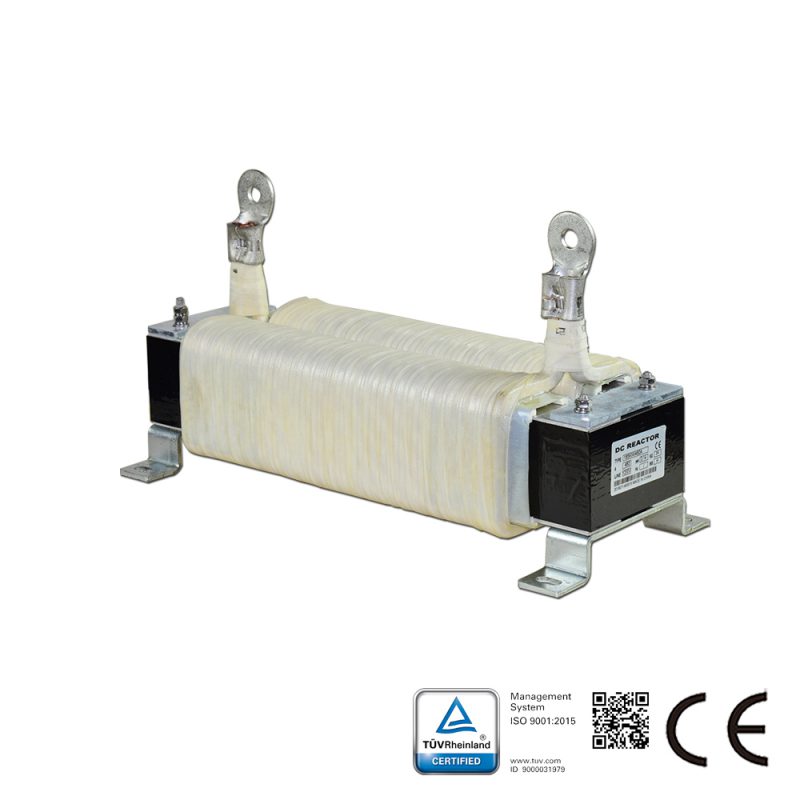

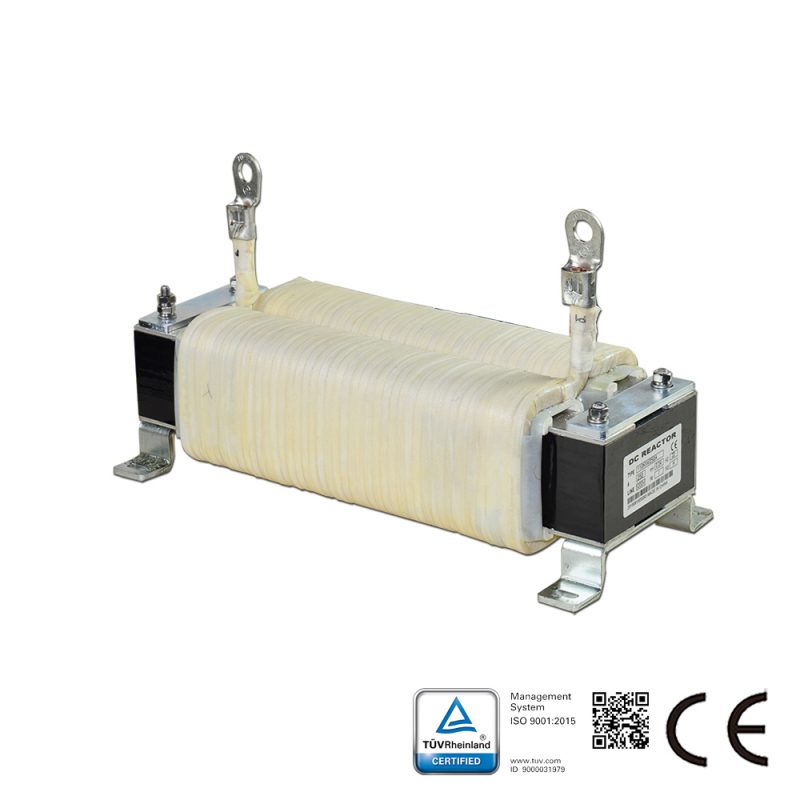

This series chokes are designed for high-frequency inverter circuit and suitable for power supplier system of AC 10-30KHz frequency and below 1KV rated voltage, it is a string of high-frequency circuits in harmonic components which can protect other electrical components safe and reliable operation; also can reduce current ripple, guarantee continuous current, and improve quality of power supply when the inductor reaches a certain amount.

Characteristic of this series
Capacity: 0.75KVA-1000KVA
Phase type: single phase / three phase
System voltage:normally 0.4KV,less than 1KV
Current rated: 10-2000A
Vital meterial: High-frequency magnetic core(Low residual magnetism, low loss)
External equipment:High-strength insulation material as a fixed member
Impedance: 1%/4.5%/5%/6%/12%/13%
AC power supplier frequency: 10-30KHz
Protection class: IP00
Operation ambient temperature: -20~50℃,best in 40℃
Insulation class: F/H class
Industrial standard: GB10229-1988
Certification :CE

Application:
High-frequency power supply or high-frequency circuits
