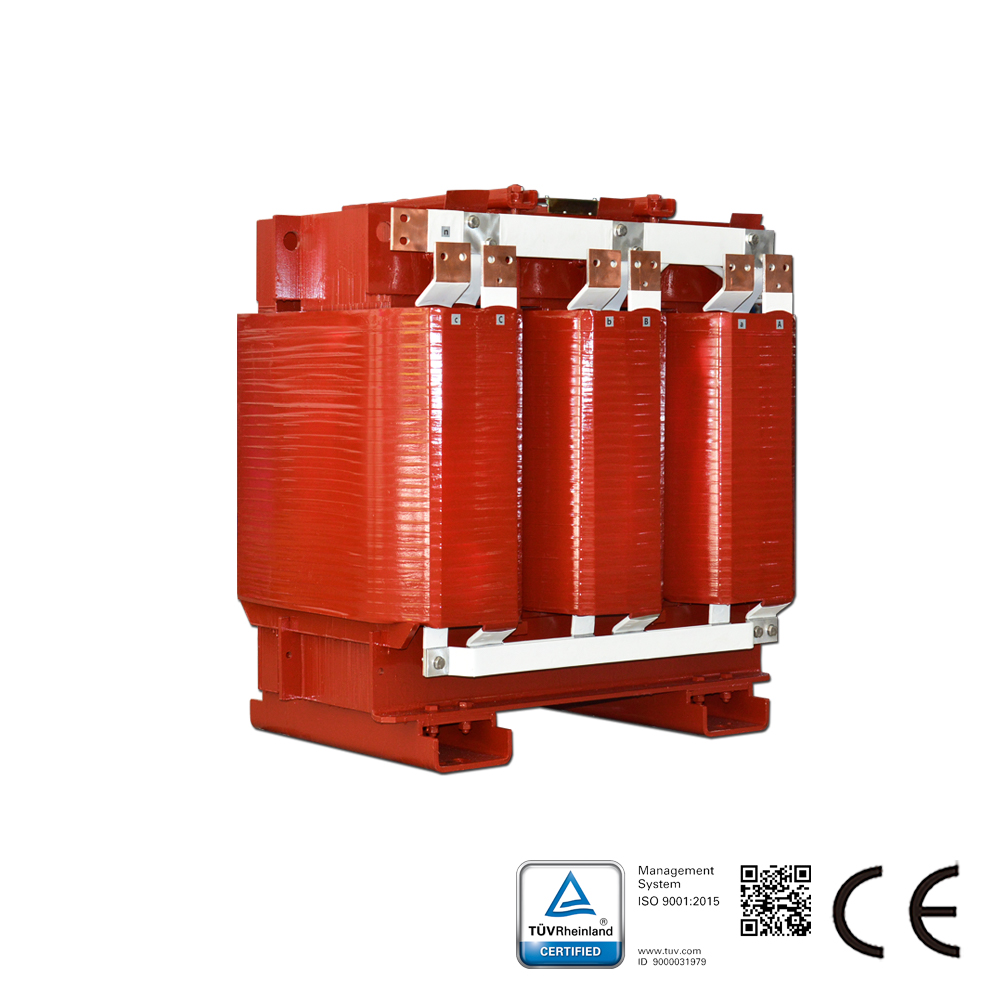

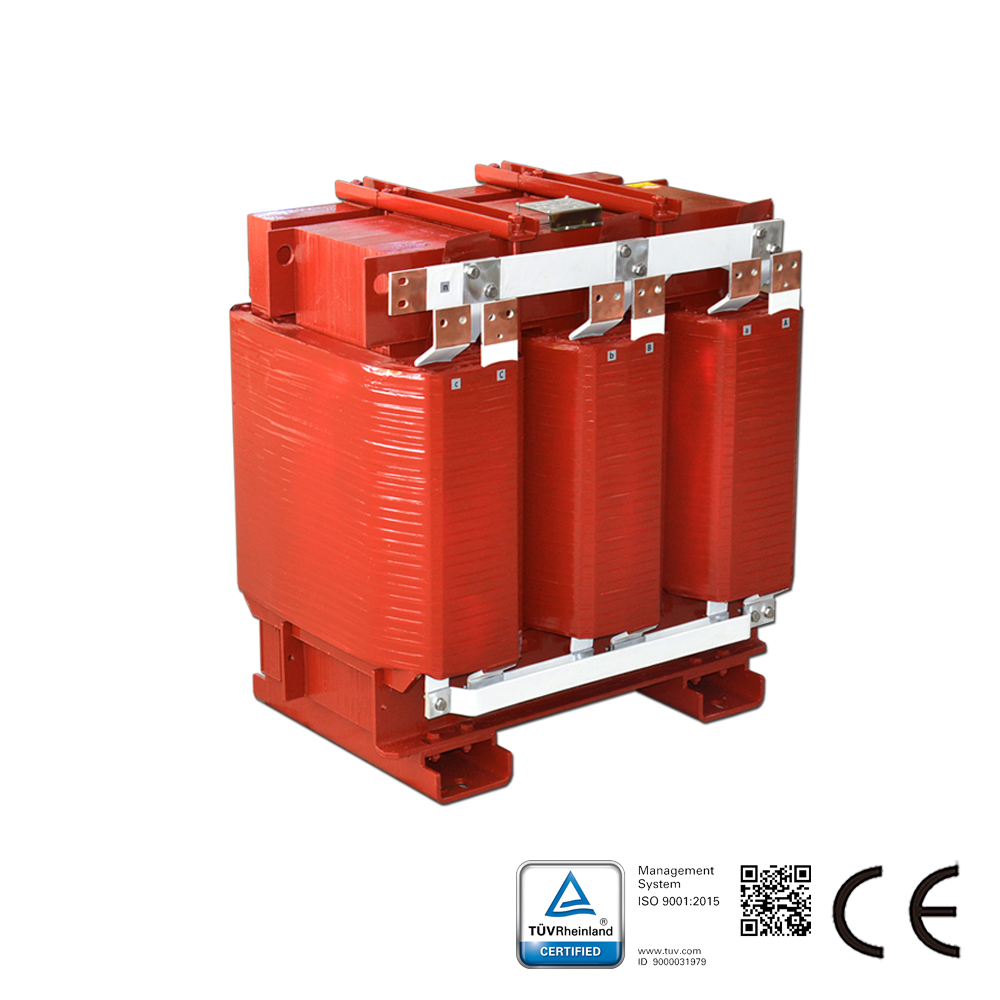

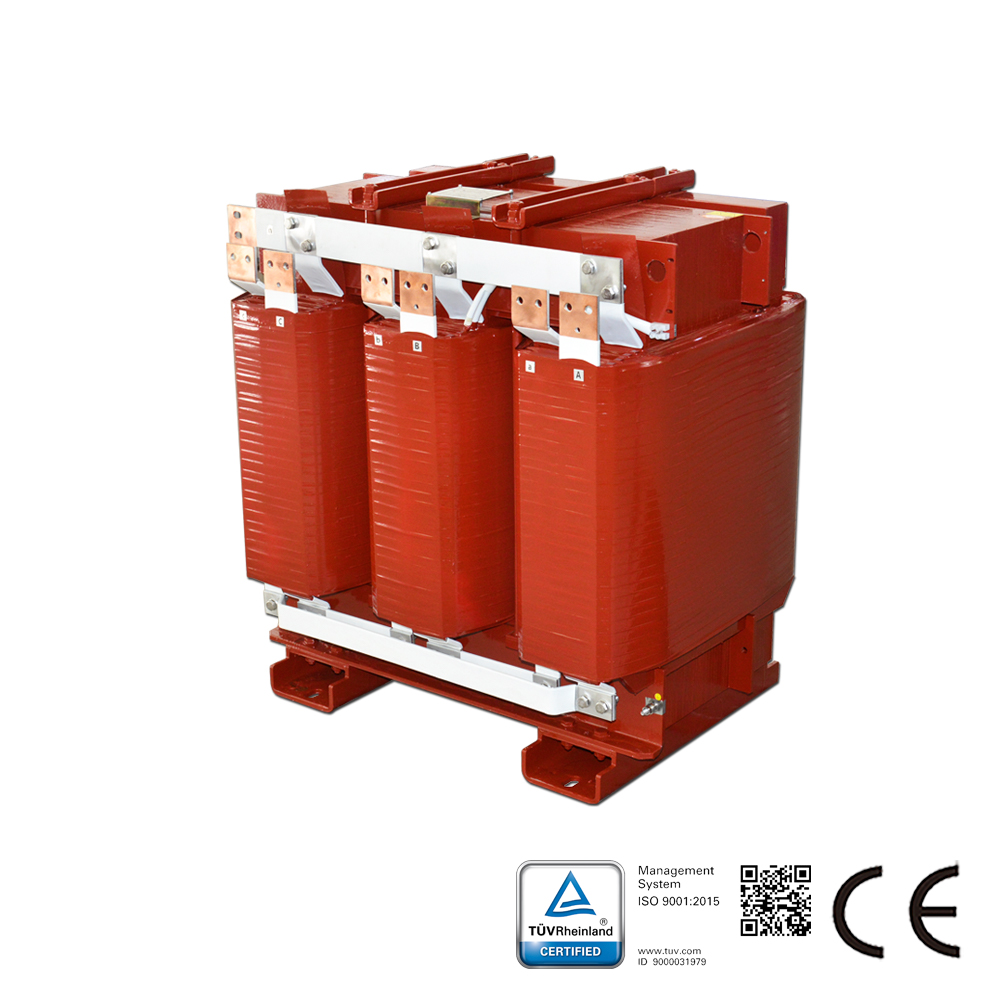

Description of Power Isolation transformer:

Industrial Control Transformers provide stepped-down voltages to machine tool control devices and meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used.

Characteristic of this series:
1.Power range: ≤15KVA.
2.Phase: Three phase
3.Primary voltage: 400V/440V/690V
4.Secondary voltage: 230V
5.Frequency: 50/60Hz
6.Connection: Screw faston terminals
7.Fixing system: Angles DIN 41307
8.Winding: Enamelled copper wire class F/H, separated primary and secondary(galvanic separation)
9.Protection class: IP00 or as customer required.
10.Insulation class: F/H
11.Standard: According to EN61558-2-6

Warning of Power Isolation transformer:
Environment exists without gas, steam, chemical deposition, dust or dirt. Explosive or corrosive medium is not allowed.
