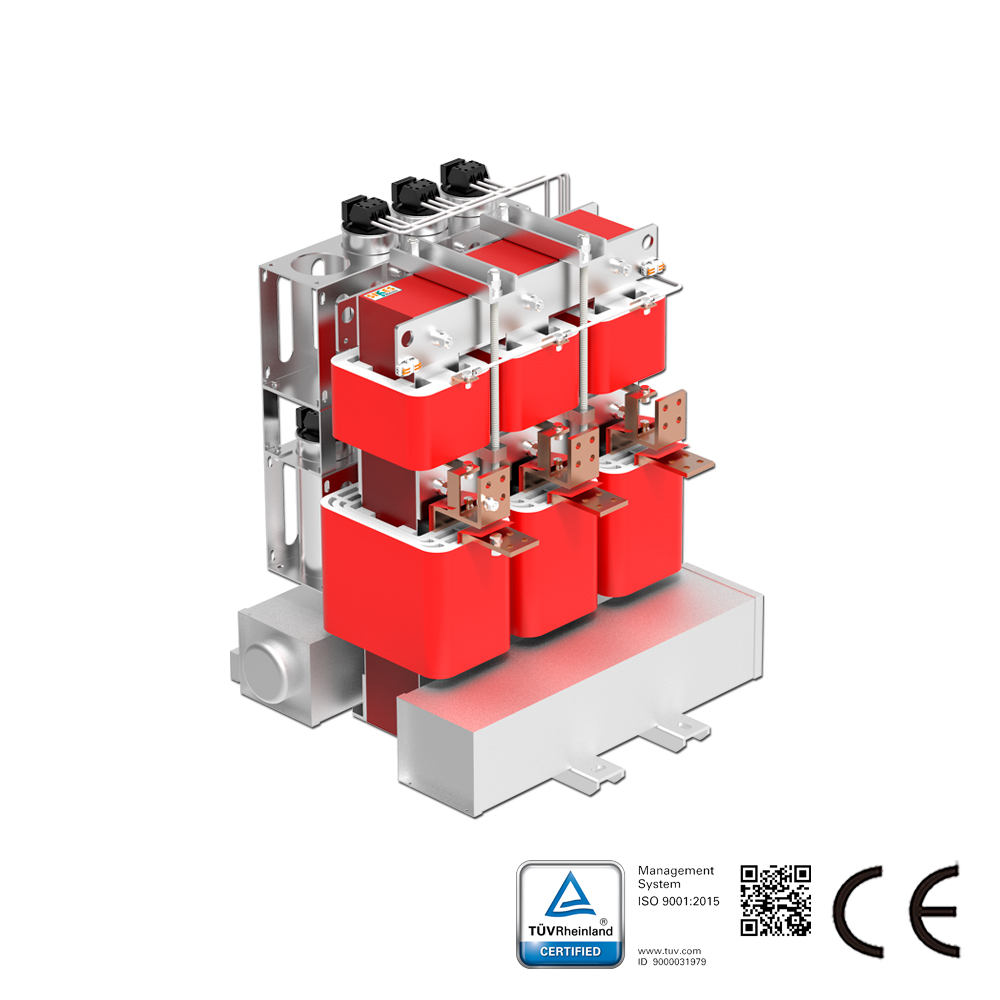

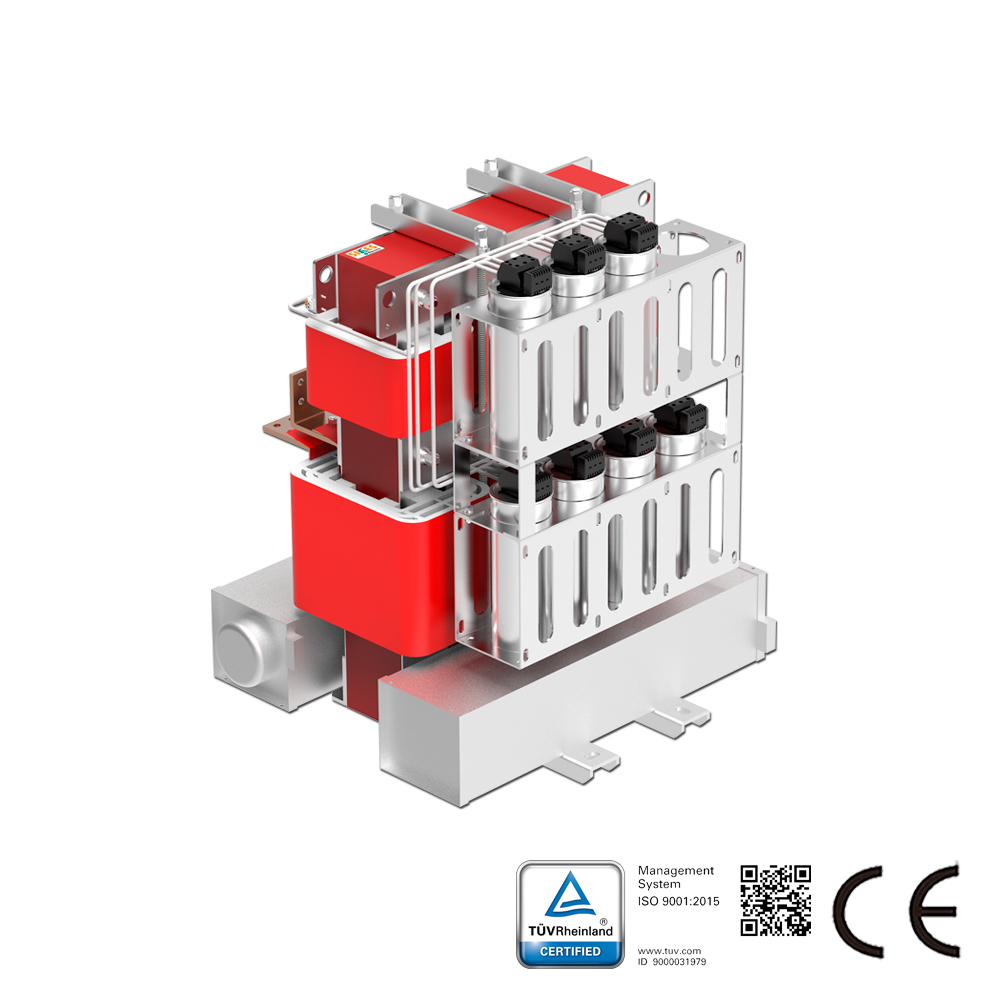

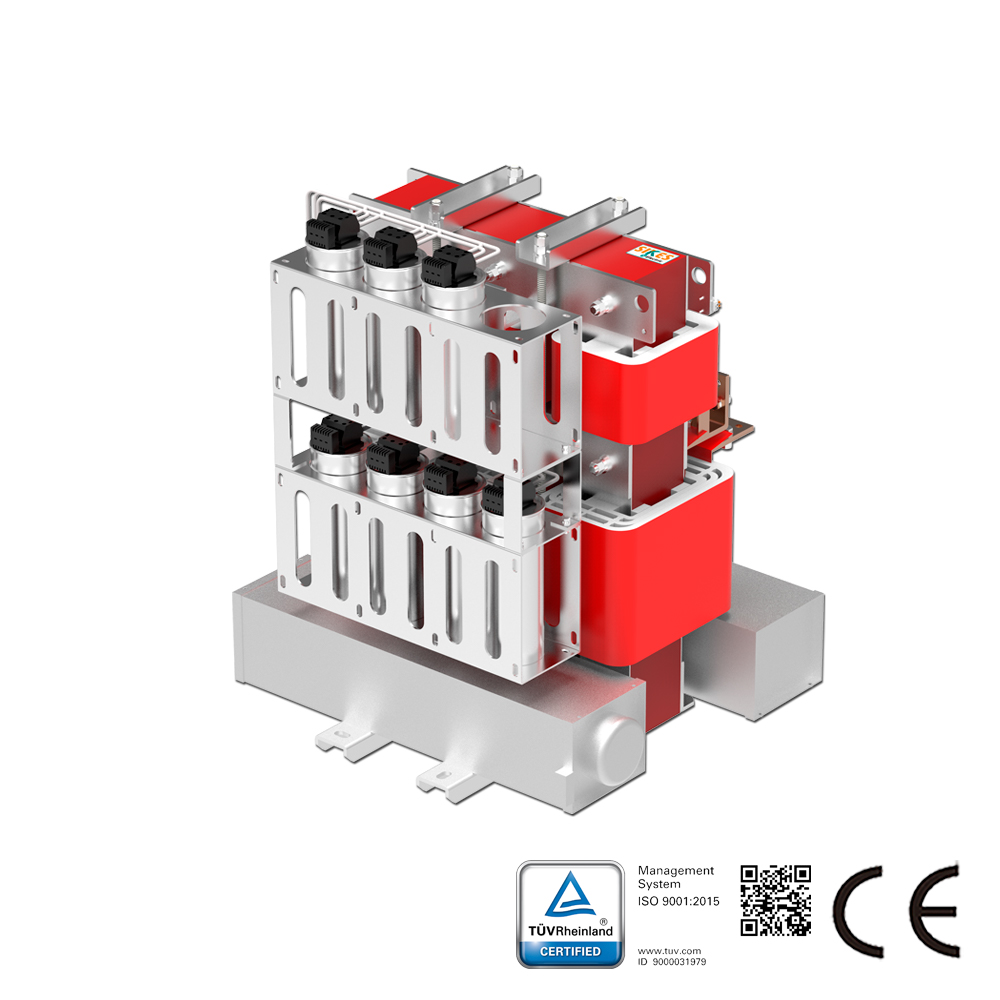

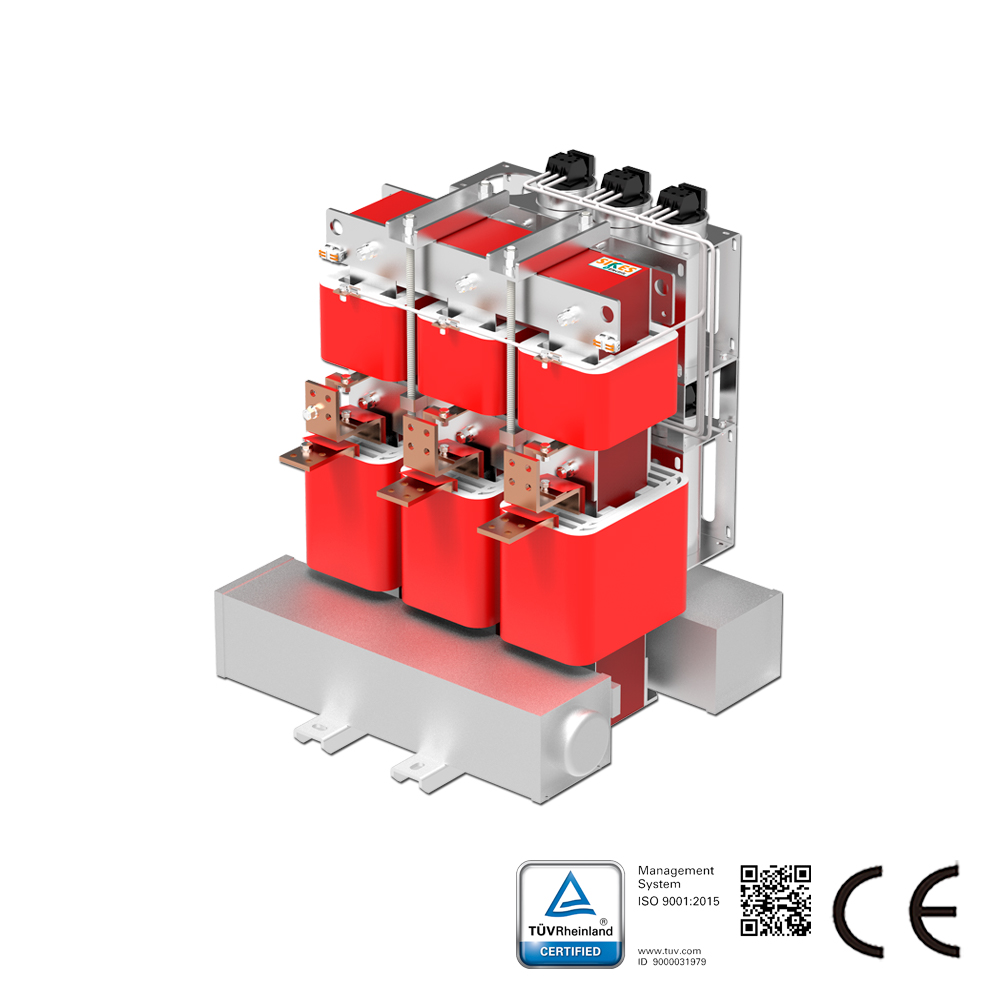

Harmonic Filter for Medium frequency furnace THDi＜30% 800 A

Model: SKS-OSK-0800-4A5/30-A0

Description of Passive Harmonic Filter: This passive harmonic filter is designed for Medium frequency furnace . The filter can efficiently reduce the harmonic current distortion to required level. Typical application:non-linear three-phase power supplies where potential risk is high due to thermal and electrical overload caused by harmonic currents. (THDi＜5% on request)

Product or Solution Inquiry

Live Chat

Share to:

Specifications

AC/DC	AC
IP Class	IP00
Nominal Current Range (A)	800
Nominal Voltage range (V)	380
Operating frequency	50 Hz
Phase	3 Phase
Power range (KW)	/
THDi	<30%
Type of optics	Passive

Product Details

Description of Passive Harmonic Filter:

This passive harmonic filter is designed for Medium frequency furnace . The filter can efficiently reduce the harmonic current distortion to required level.
Typical application:non-linear three-phase power supplies where potential risk is high due to thermal and electrical overload caused by harmonic currents.
(THDi＜5% on request)

Features

Features of Passive Harmonic Filter:
The most Compact THDi<30% filter;
Quick installation and easy commissioning design;
Cost-effective passive harmonic filter;
Helps to comply with international power quality standards.

Technical Chracteristics of Passive Harmonic Filter：
Operating Frequency:50Hz(60Hz upon request);
THDi<5% (system requirements:TDHv<2% ,line voltage unbalance<1%);
Norminal Power Rating:1.5kw to 630kw;
Efficiency:98% to 99% @ norminal line voltage;
Overload :1.6X rated current for 1min , once per hour;
Ambient temperature:-25 to +45℃;
Protection:IP00(upon request);
Cooling:Internal air forced;
